Very rare for Beautiful Basements, but this basement was designed with no internal waterproofing, instead it would have both an external and an integral waterproofing system.

For the external waterproofing to be effective, during the application period the site and all surfaces had to be meticulously clean, a great challenge on a building site.

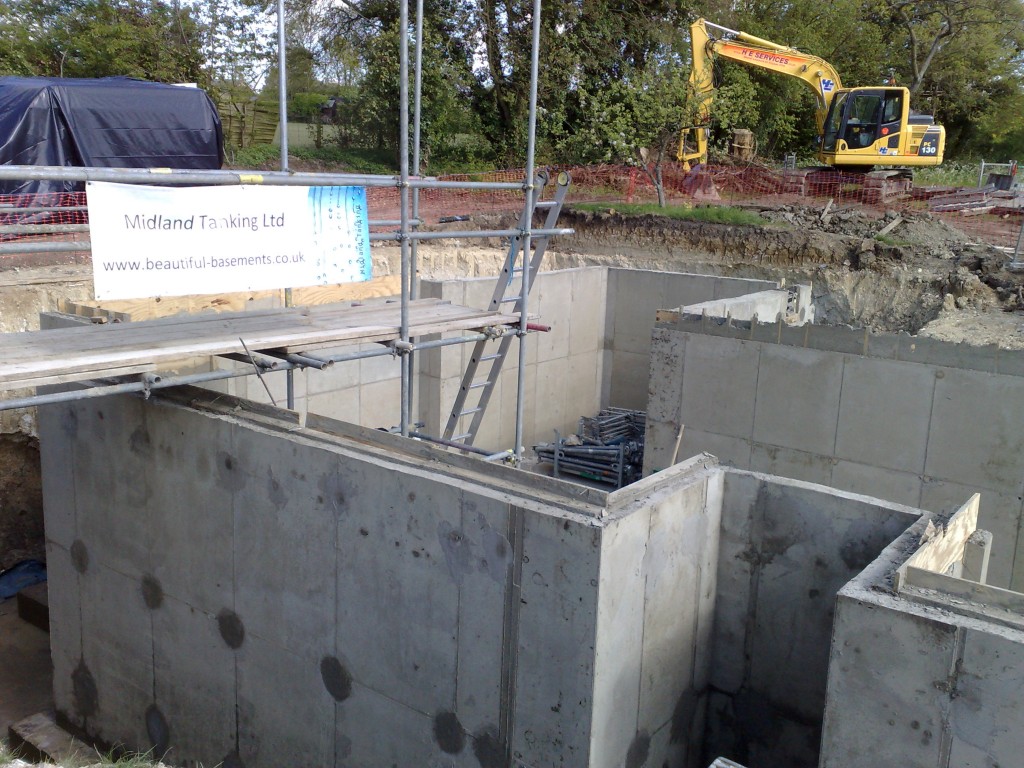

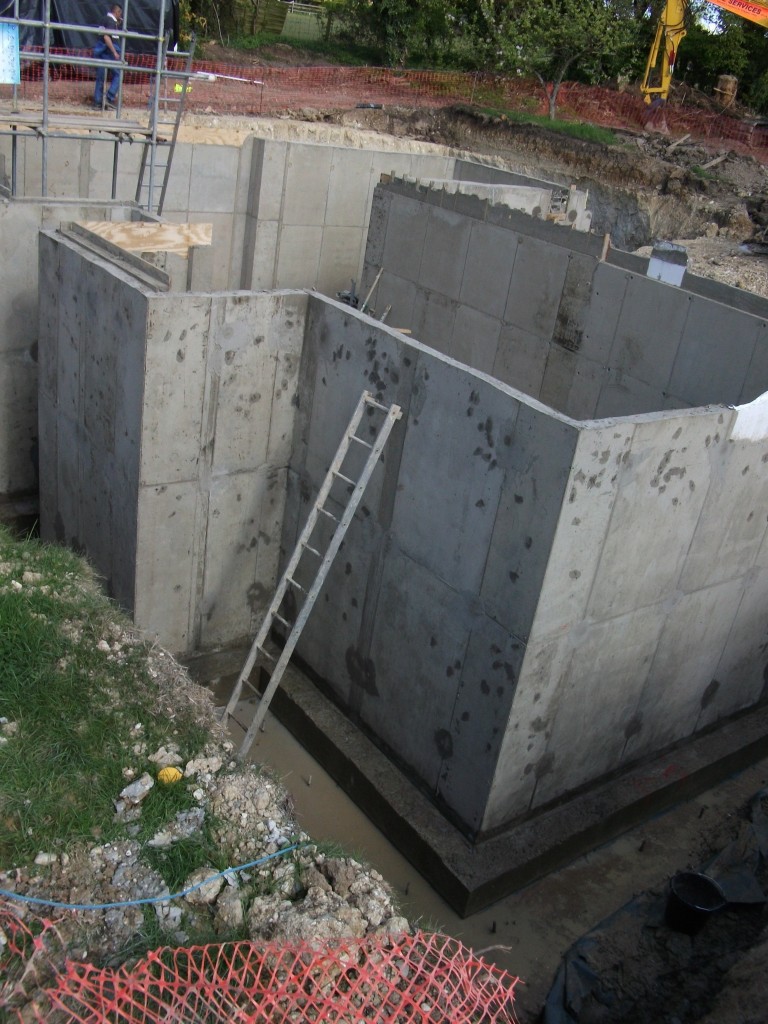

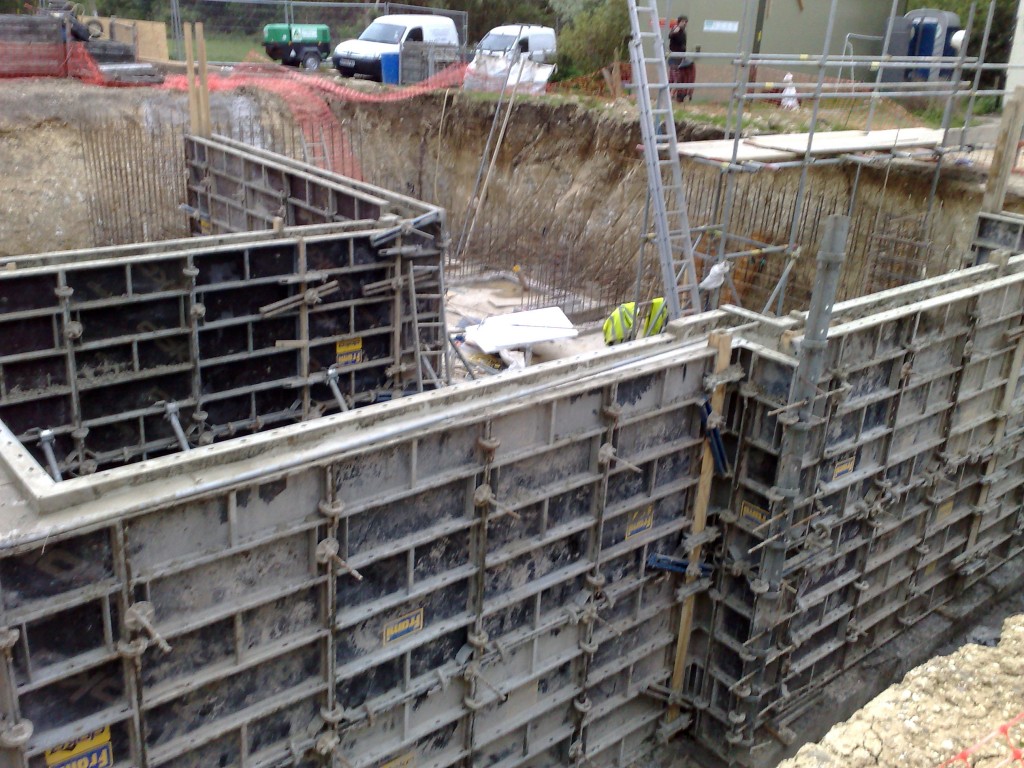

Basement walls completeReinforcing forming the slab and the beginings of the wallsTemporary formwork used to pour concrete wallsWalls extensivley cleaned and prepared prior to waterproofingBitumen sprayed onto the walls giving an even coatingExternal barrier waterproofing

Build Method

Beautiful Basements was asked to build a basement under a new, large dwelling where the site was at risk to flooding. As no waterproofing design had been done until this point, Beautiful Basements was also asked to design and install this too.

Once the old house had been demolished, the site stripped, and the excavation complete Beautiful Basements began the build.

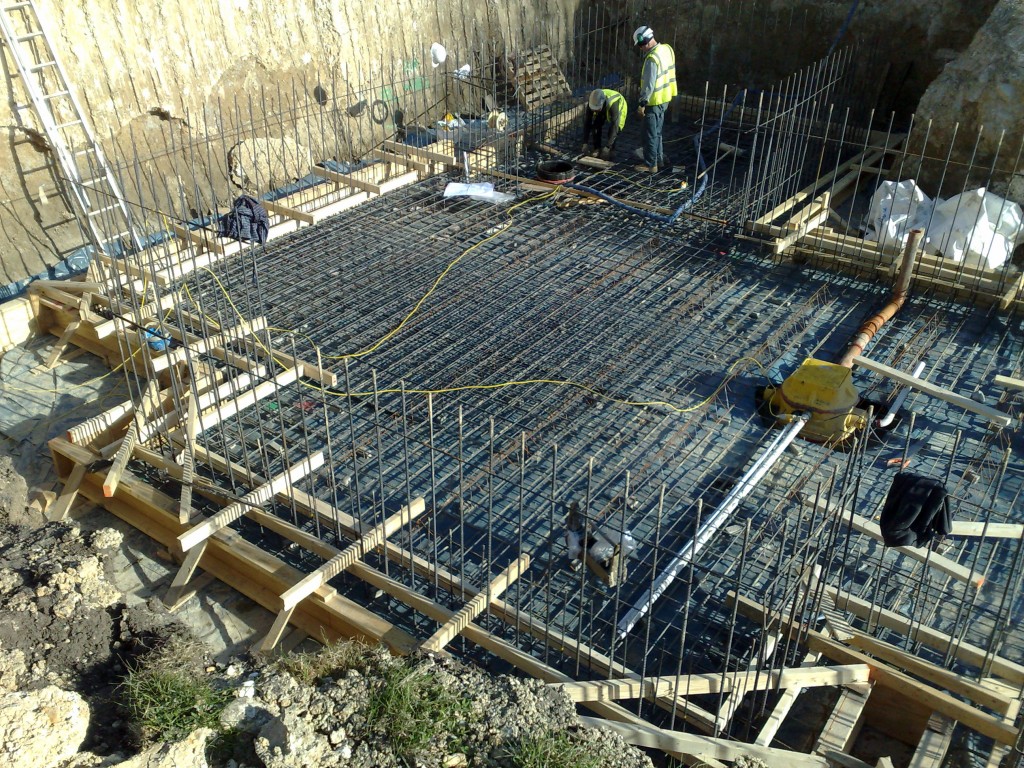

An internal foul sump was installed and then the whole of the excavation was covered in a 70mm layer of “blinding” concrete. On top of this a waterproofing layer was laid and the slab set out and steel was constructed. Prior to the pouring of the concrete, everything that was to protrude through the concrete (foul pipes etc) had an expanding water stop applied to it to ensure no water could track up the joint.

The main concrete slab was then cast with a kicker in place and was done using a waterproofing additive mixing within the concrete.

The walls were then constructed with reinforcing and waterproof concrete. Finally, the ground floor was installed, using large concrete planks.

Waterproofing Method

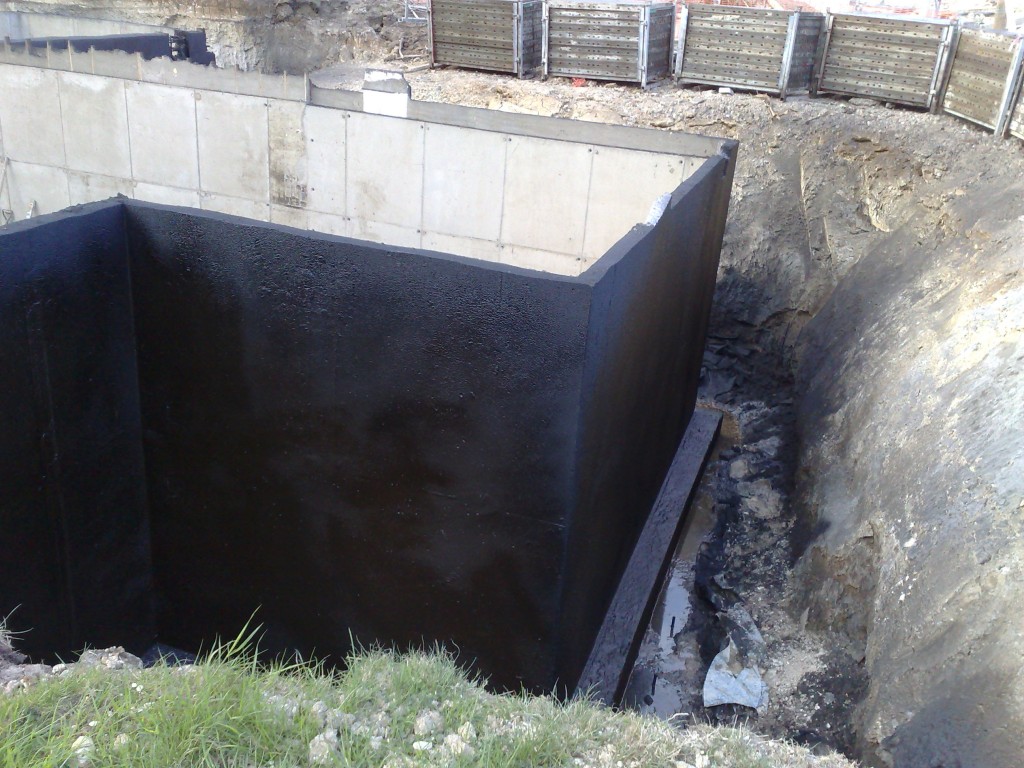

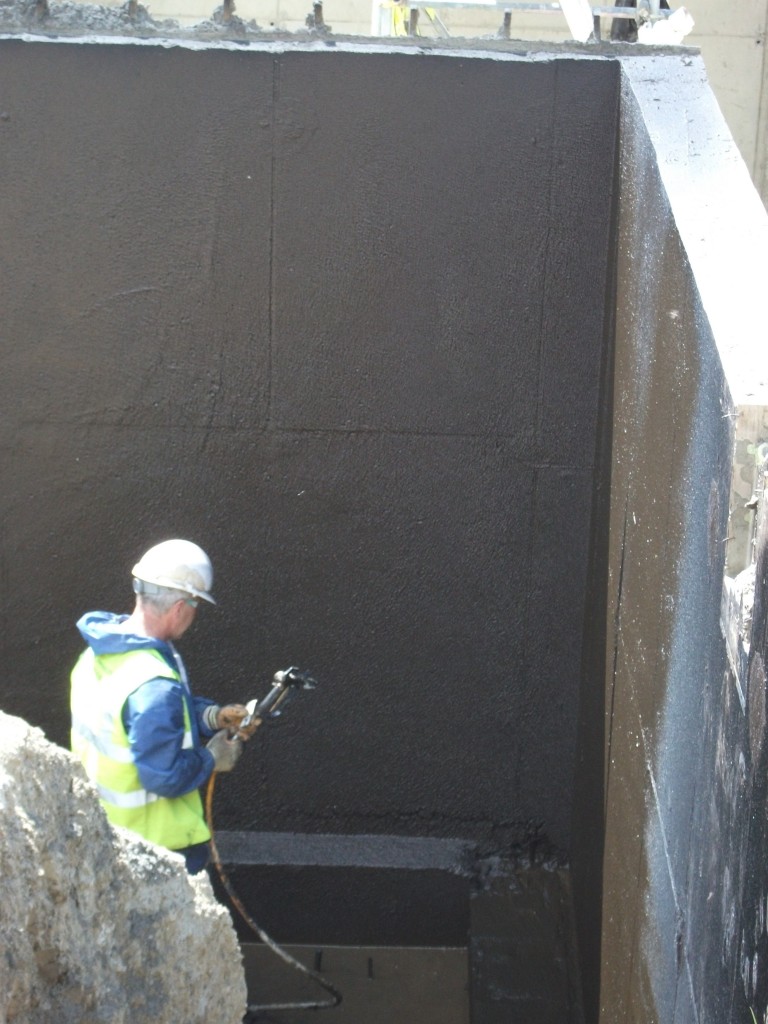

Type A Barrier Protection – A flexible bituminous tanking was sprayed on the external walls. Two coats were installed with a fibreglass mesh embedded between to give extra strength. This spray layer was linked to the waterproof matting laid under the main concrete floor slab.

A 160mm perforated land drain was laid below the level of the slab and connected to an external sump and pumping station to reduce water build up on the walls

Type B Integral Protection – The concrete within the walls and floor had an additive that reduces cracking and creates waterproof concrete.

All waterproofing products supplied by Koster Aquatecnic

Categories:
Location: Balsham, Cambridge
Surface Area: 85 square meters
Completed: 2010
Architect: Hibbs Walsh Associates
