Conversion of a basement within a grade II listed house in Edgbaston

The Challenges

The building is grade II listed and within a conservation area, so no changes could be made externally, this included creating a light well/window for emergency escape. One of the legal requirements for creating a habitable space in a basement is providing an emergency escape route. To achieve this, every door in the house had to be upgraded to be 30-minute fire rated.

Project Details

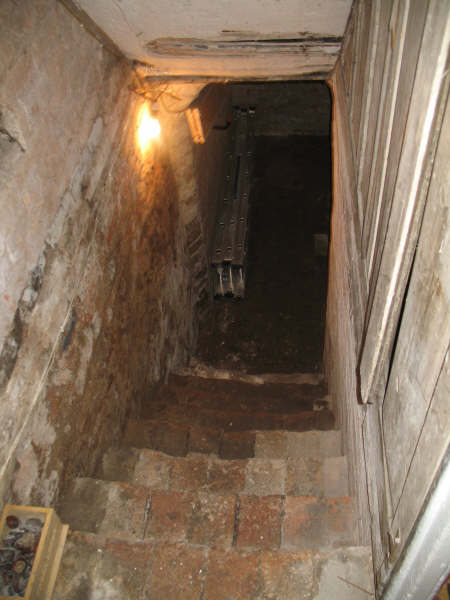

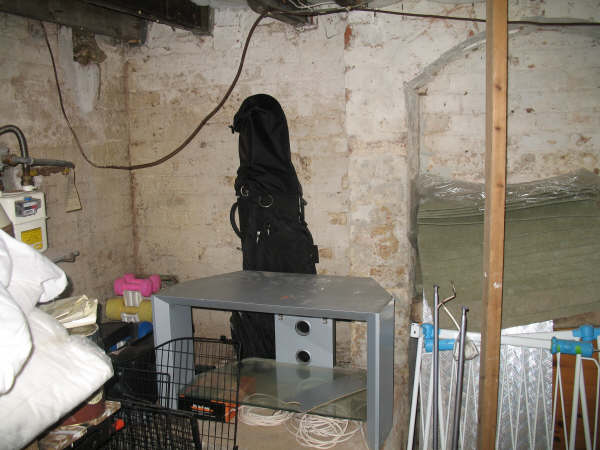

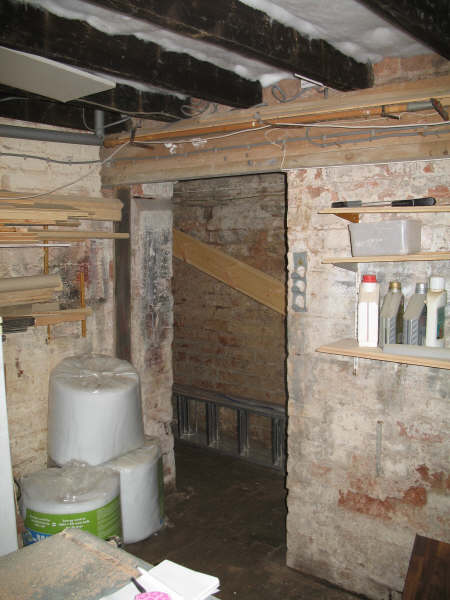

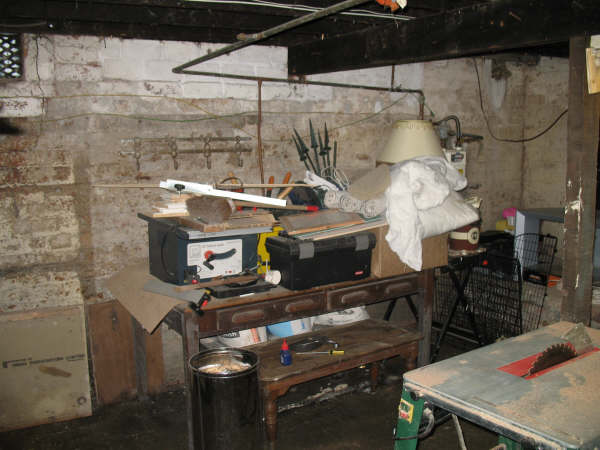

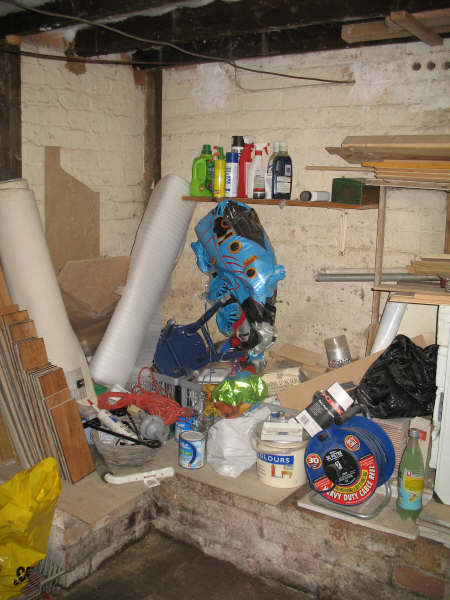

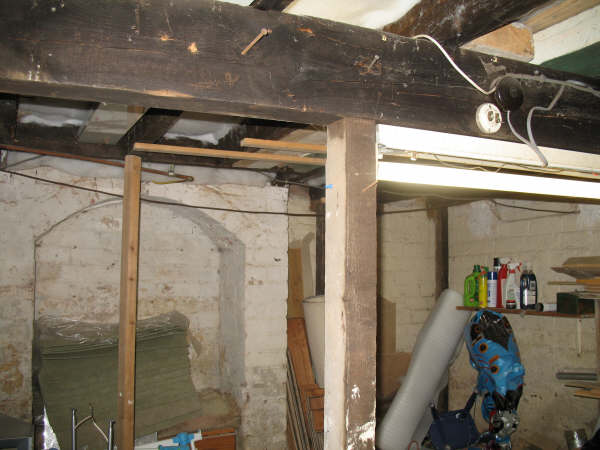

Once emptied, the basement floor was removed and lowered slightly to allow for more head room. A new floor was cast with drainage underneath, all leading towards a ground water sump.

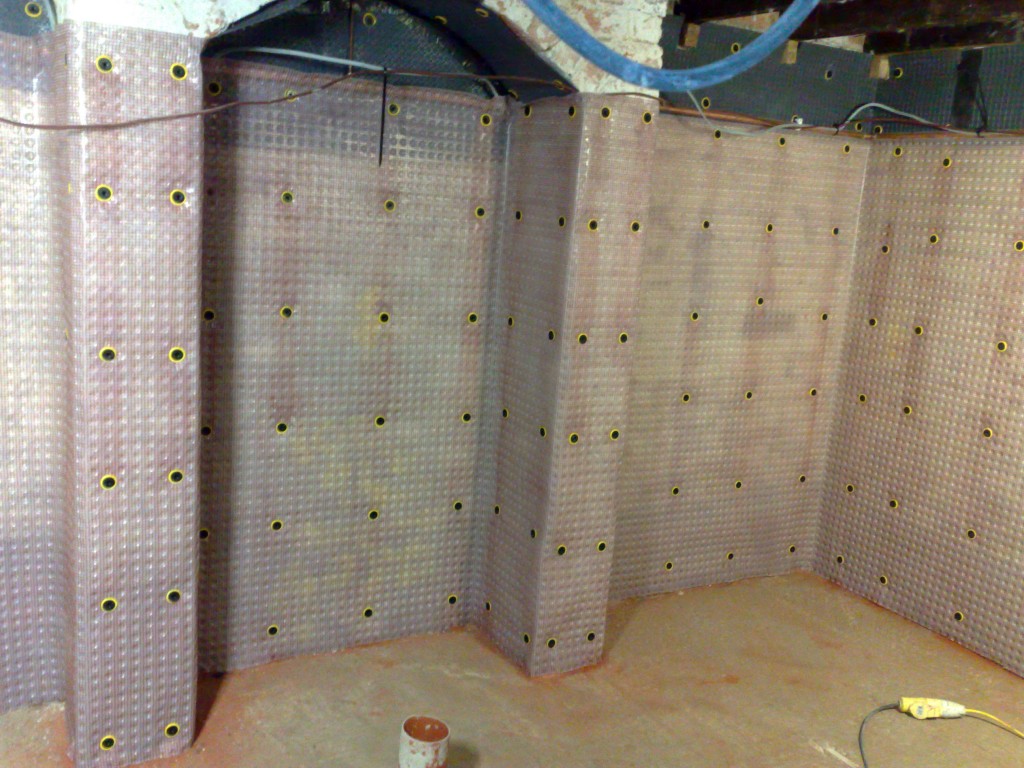

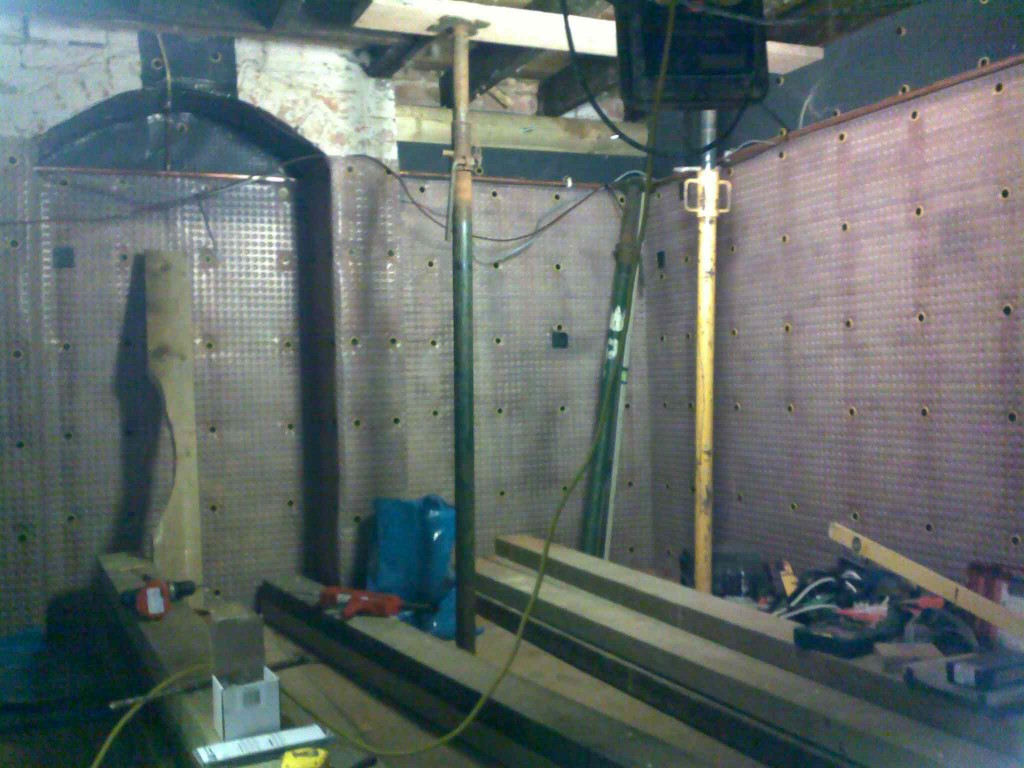

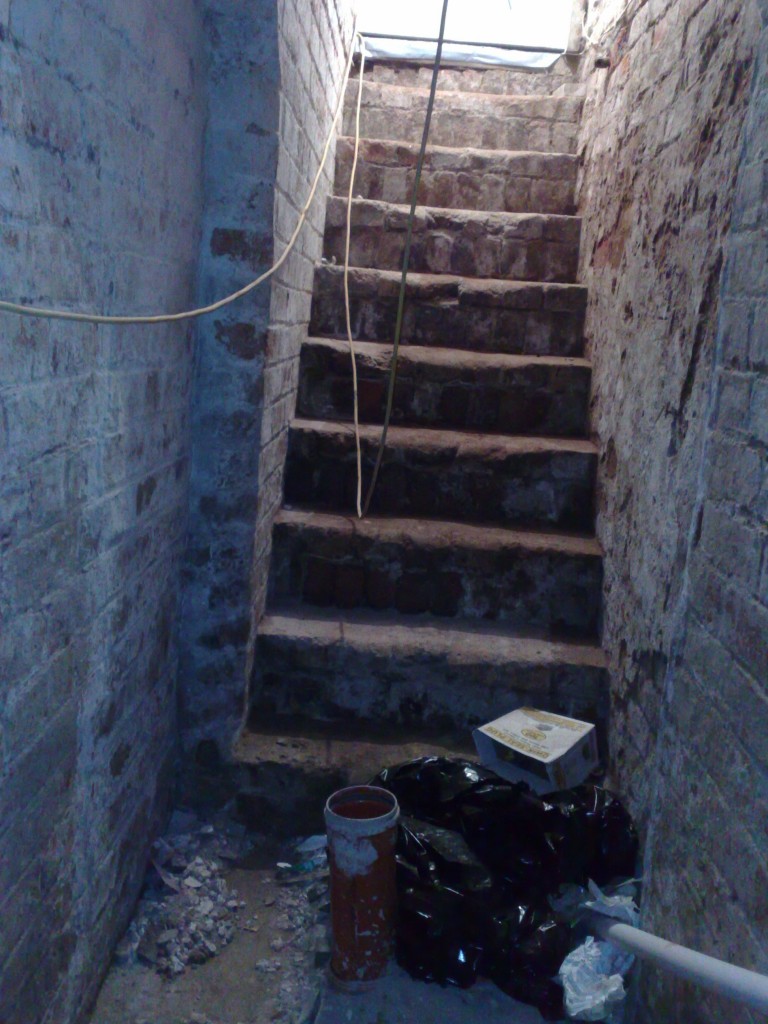

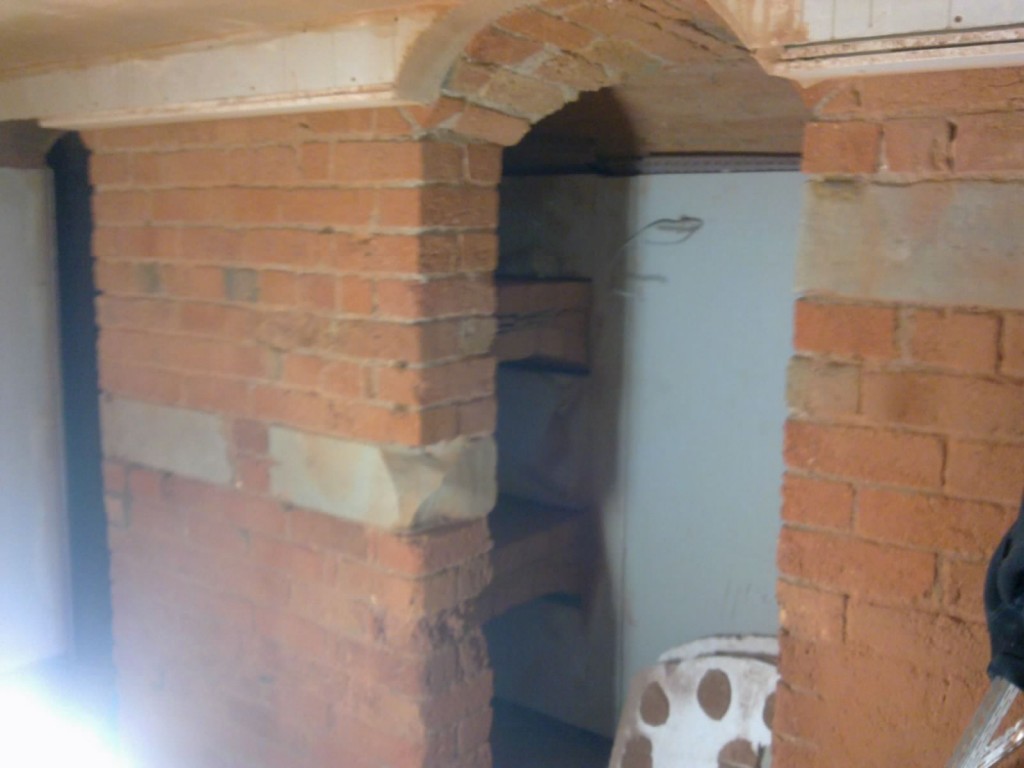

The section of the basement that had shelves was then grit blasted to restore the original brickwork and the rest of the space was waterproofed using a cavity drainage membrane, linked to the sump, two pumps and an alarm were installed.

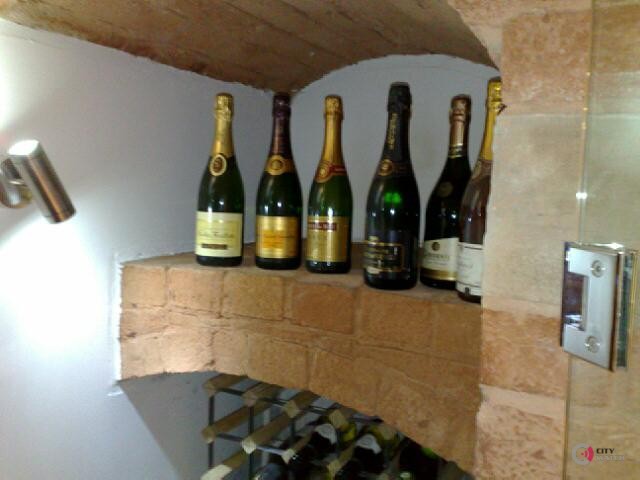

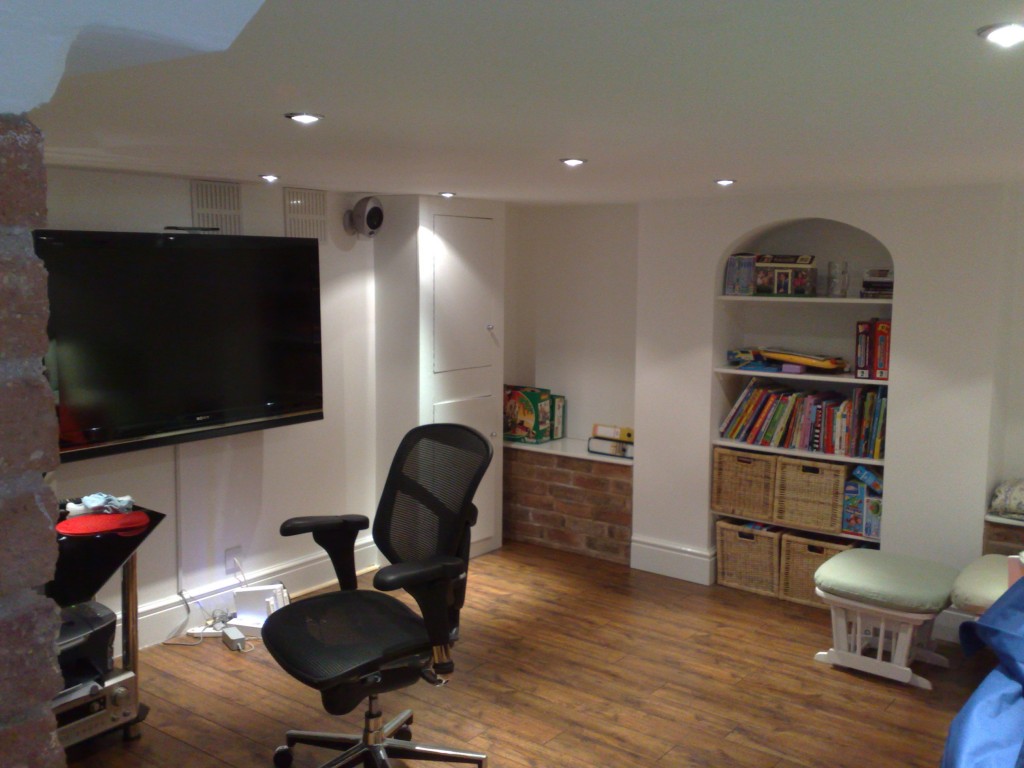

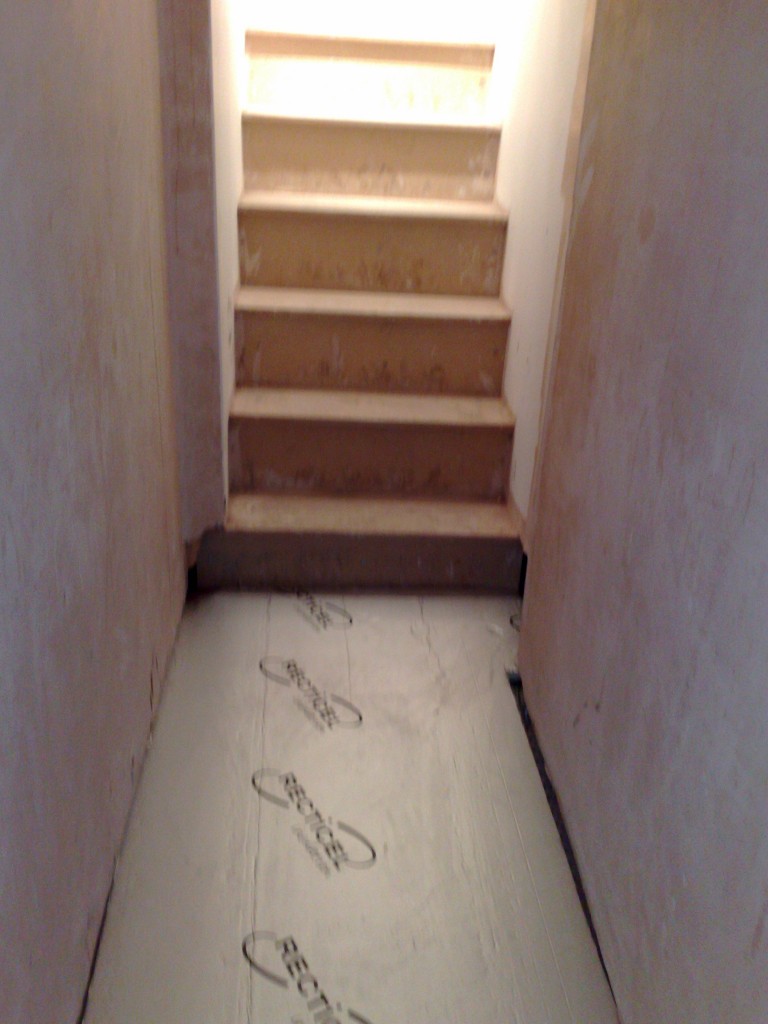

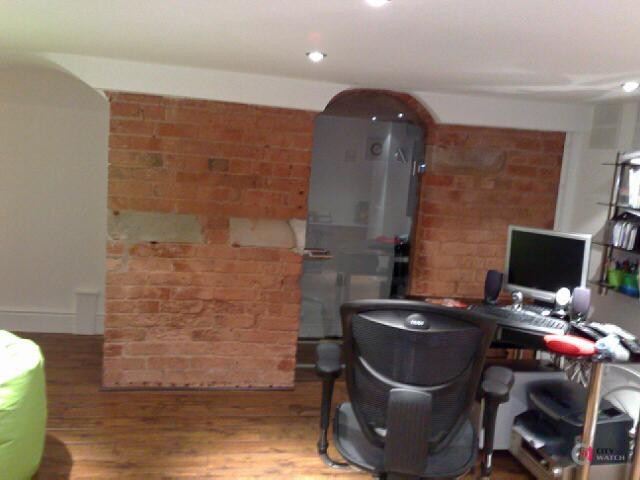

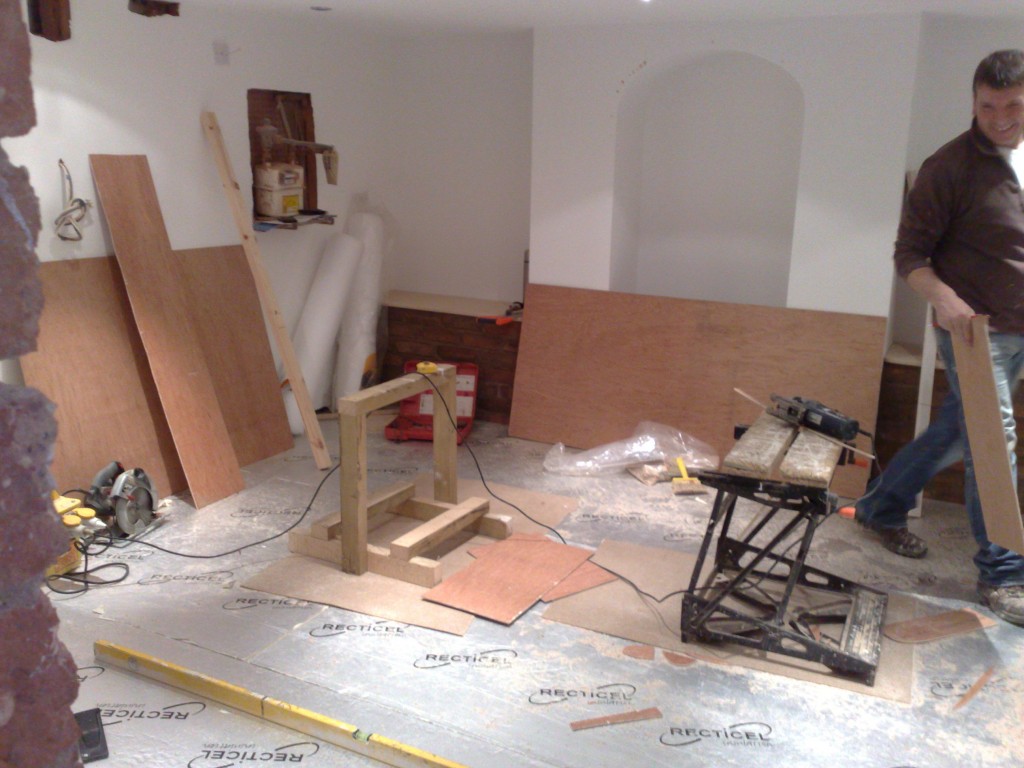

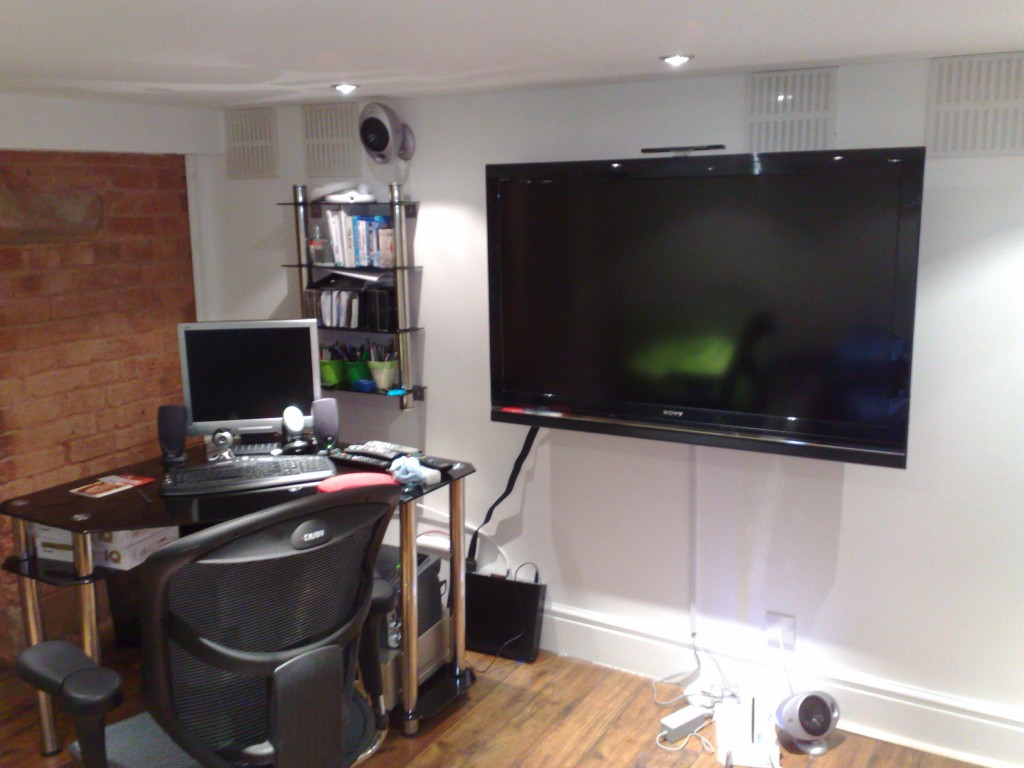

Once waterproof, the basement was then finished with a hardwood floor, insulation and plasterwork on the walls and ceiling and a bespoke frameless glass door added to the shelved area, creating a cooler wine cellar.

Categories:
Location: Birmingham
Completed: 2008

Project Description

Location:Birmingham
Year Completed:2008
