Basement under extension

Project Overview

A basement under a new extension as part of a major development of an old town house, Beautiful Basements was asked to provide waterproofing design, complete build, and waterproofing installation. The basement was partly under the existing house and partly under the new extension.

Project Details

Categories:
Location: Birmingham
Surface Area: 72 square metres
Completed: 2022

Stage 1 – Site preparation, excavating under new extension

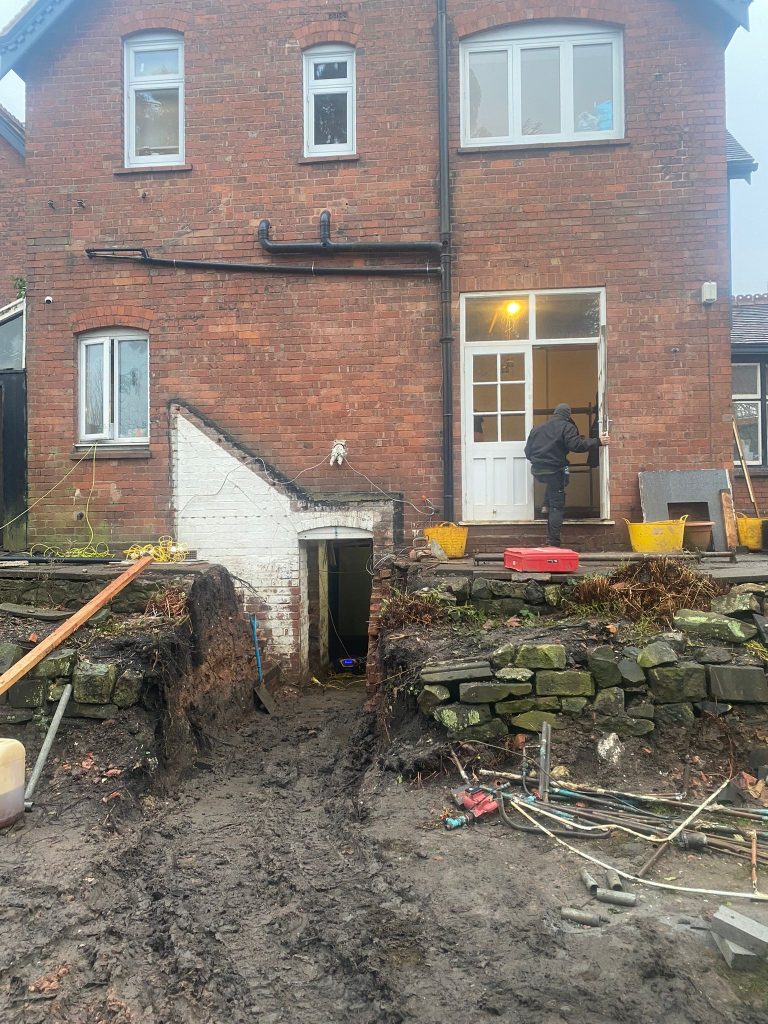

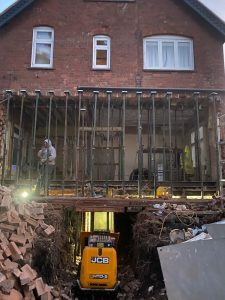

Opening the front of the house

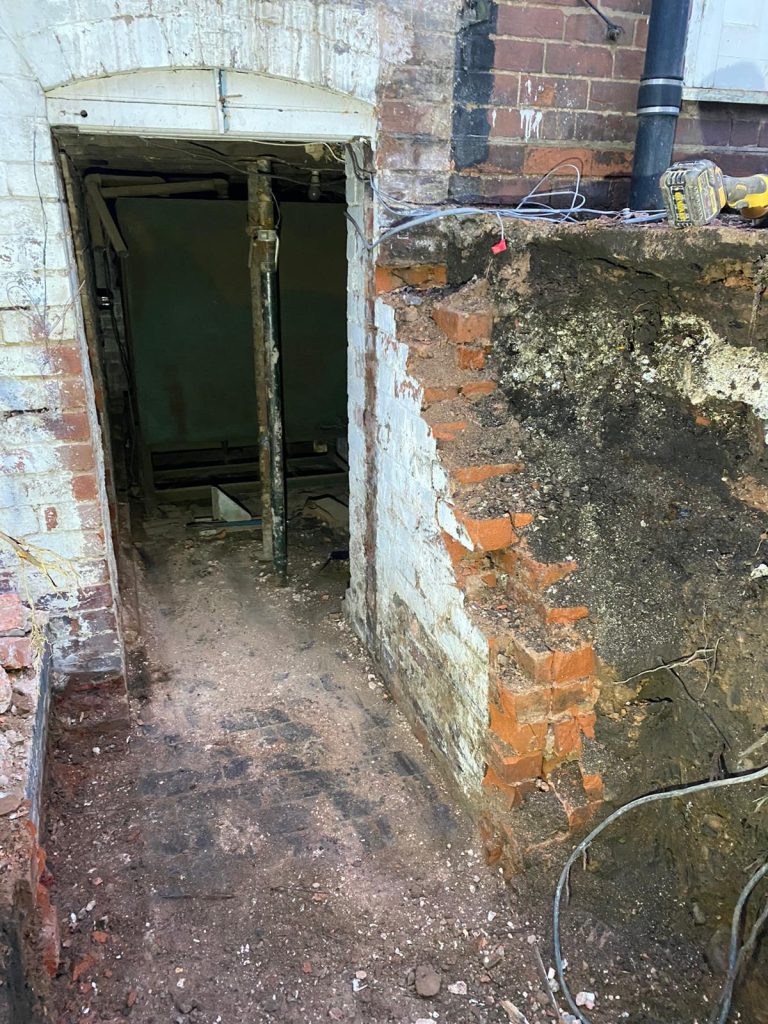

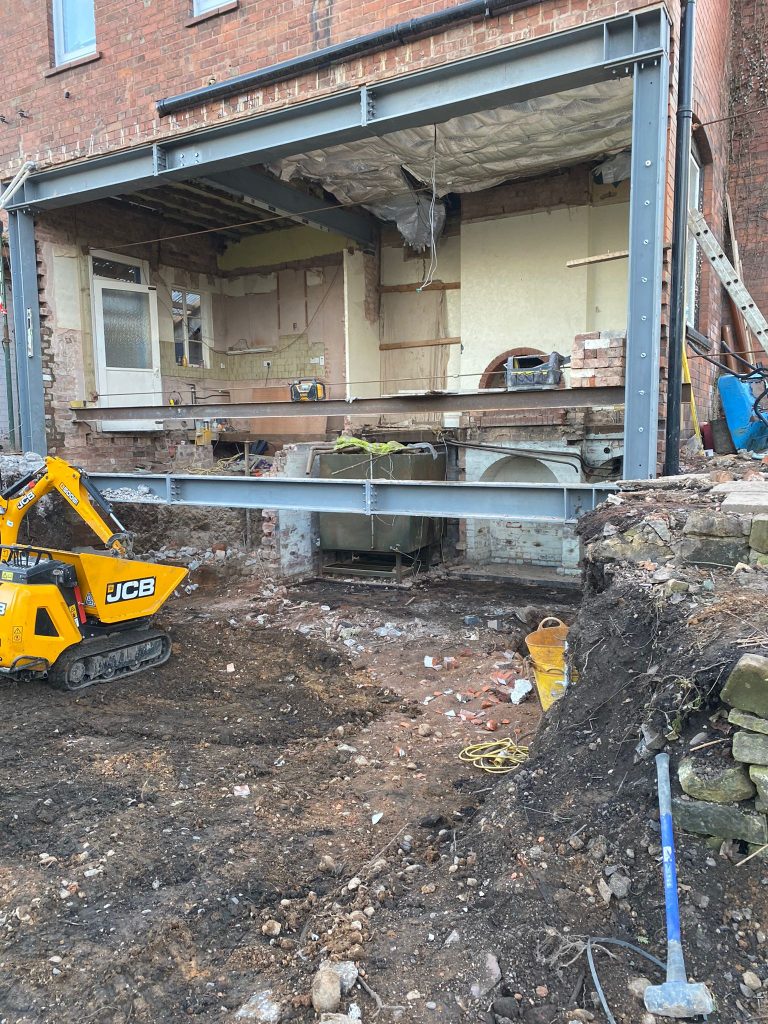

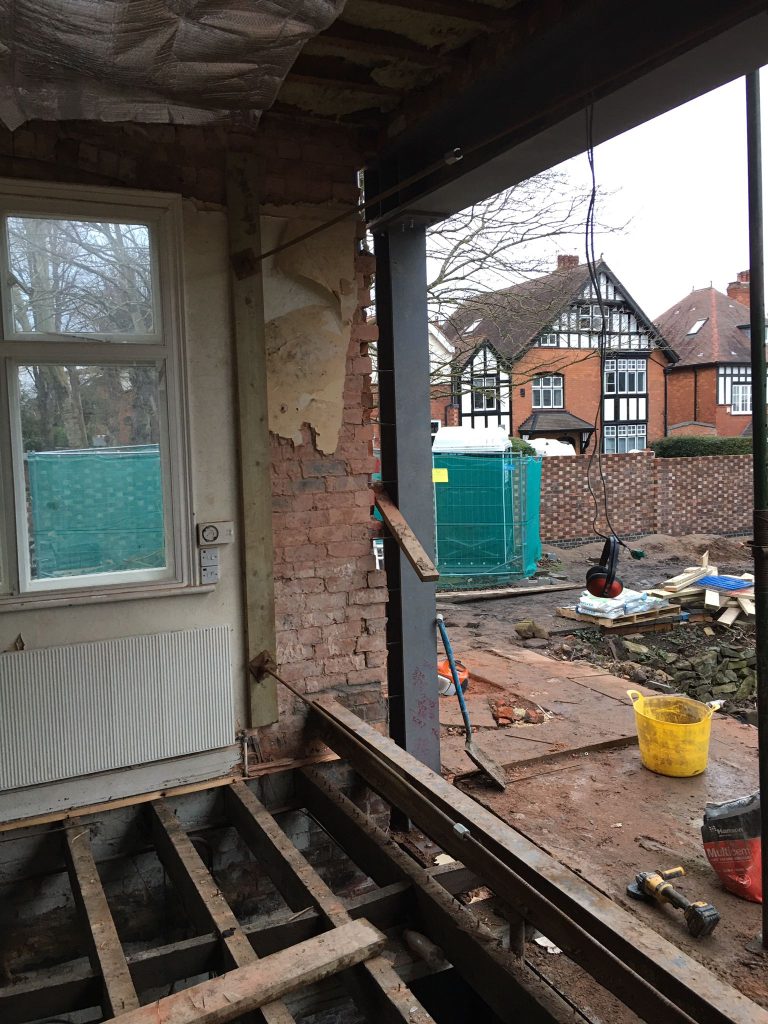

To prepare the house for the basement under the new extension, the rear of the house was supported and removed by Beautiful Basements’ crew.

Excavation

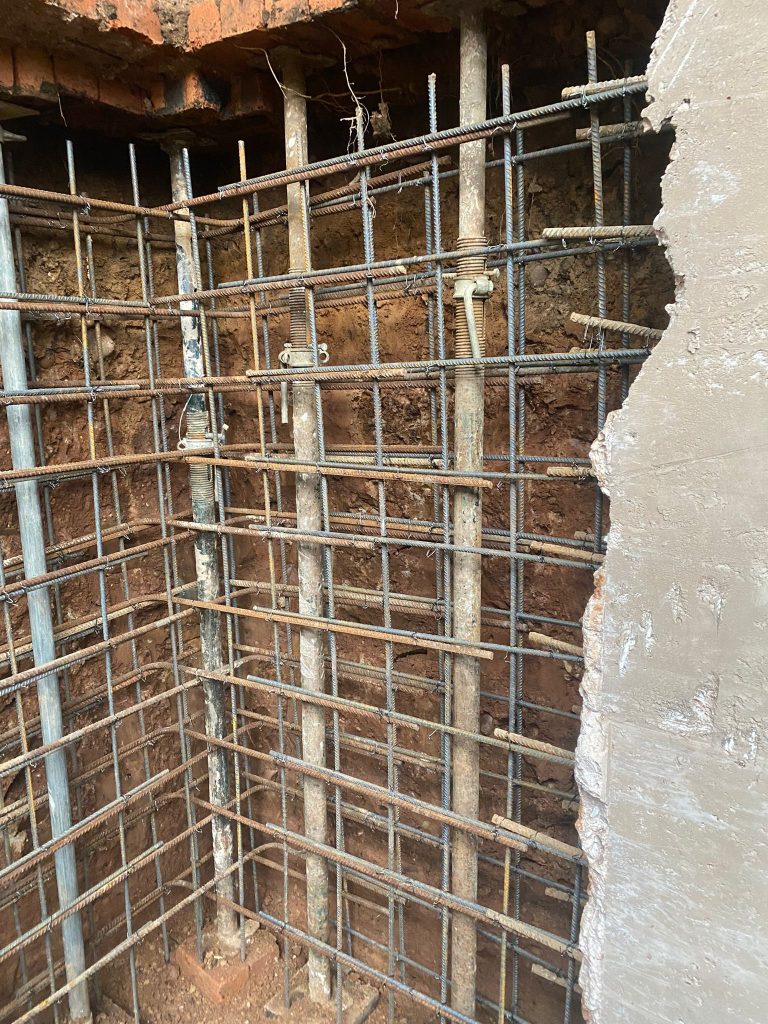

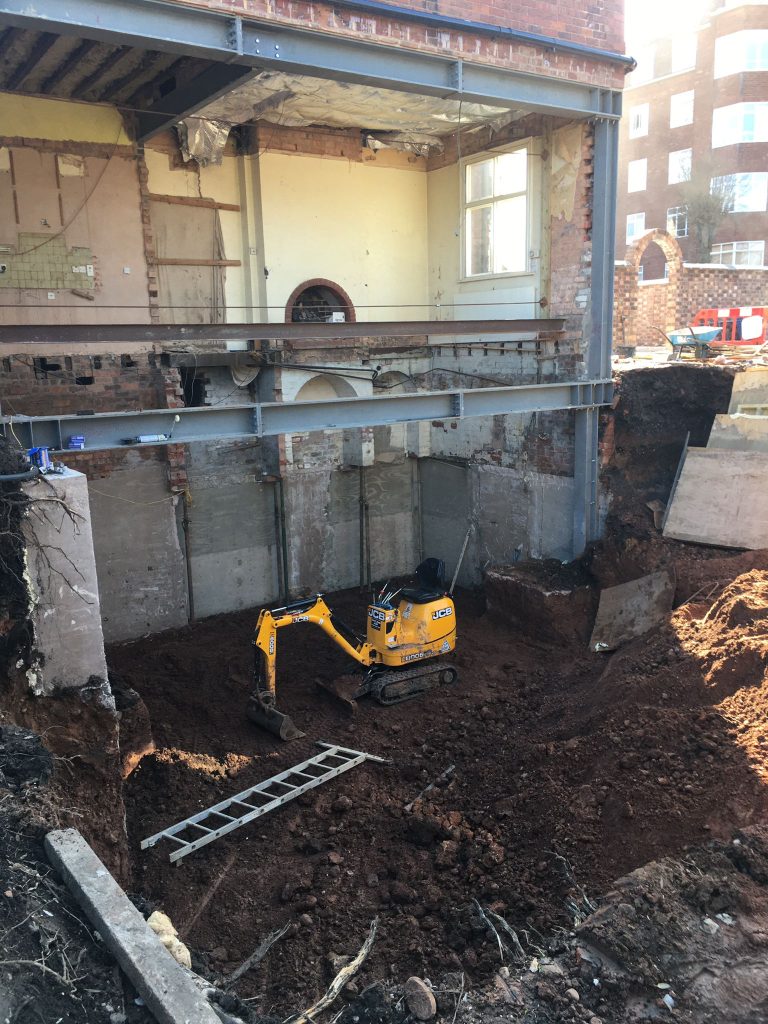

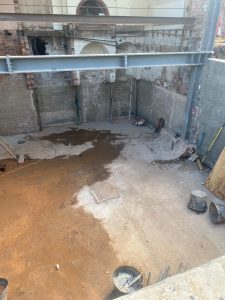

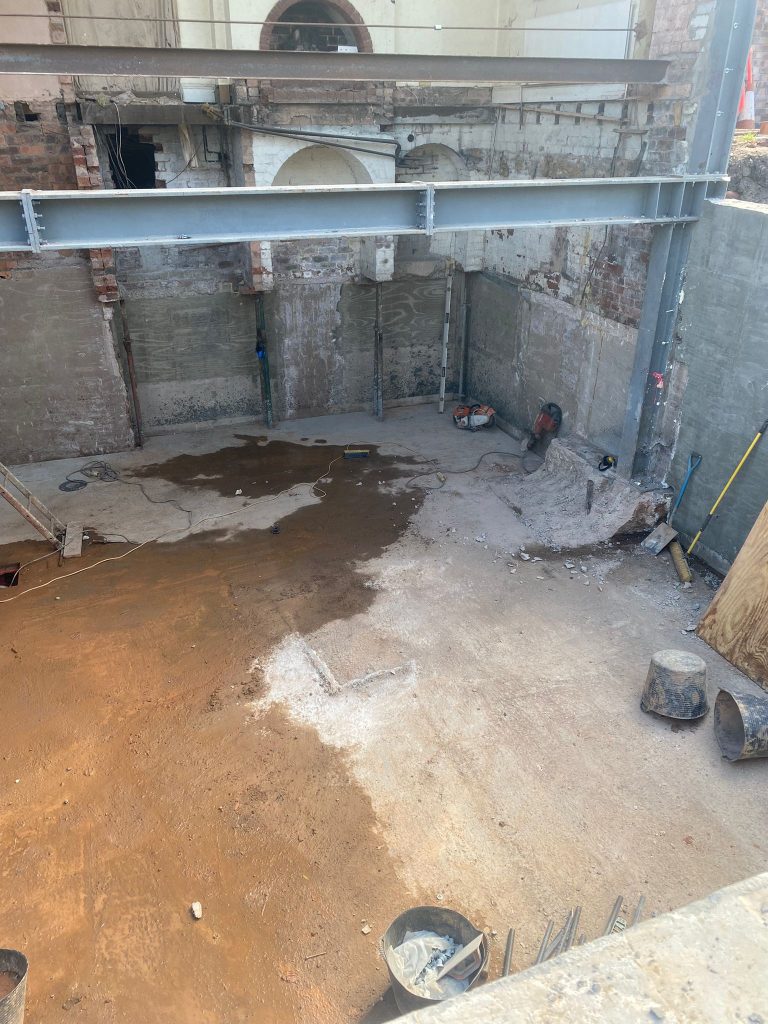

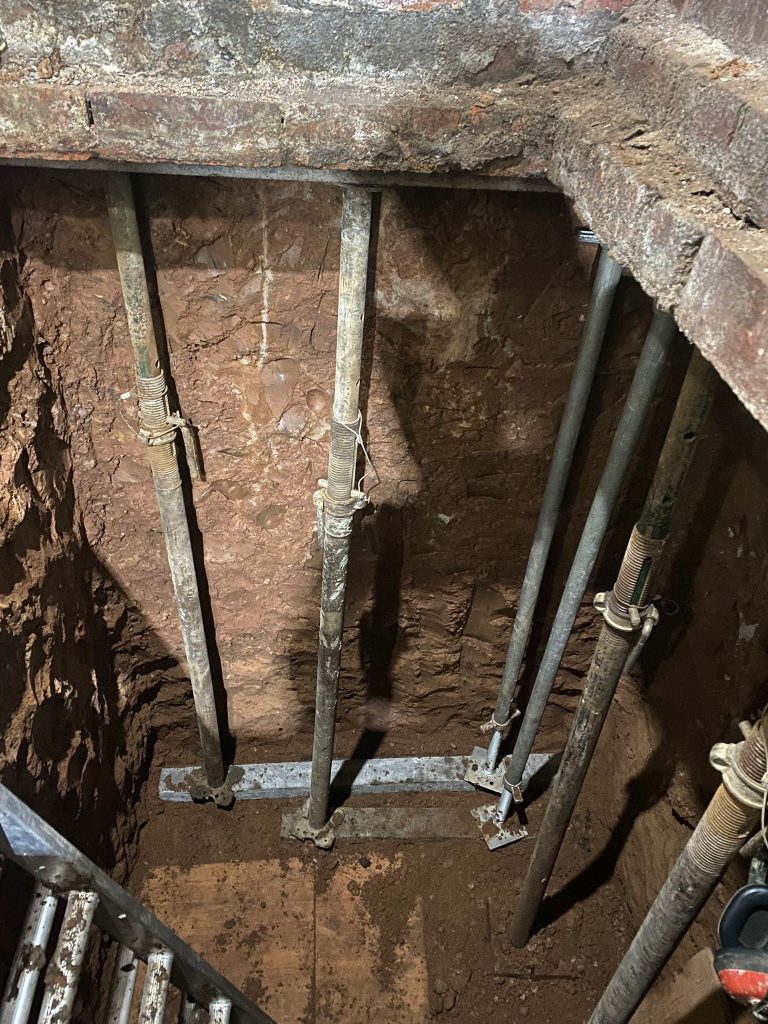

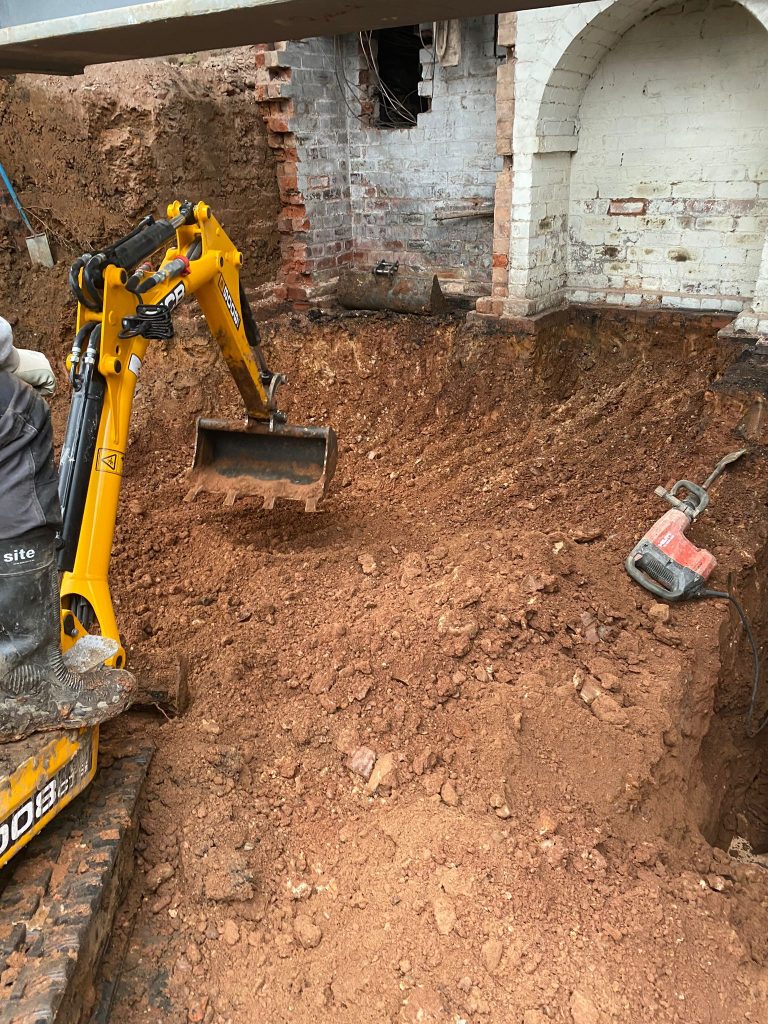

With the area prepared, the heavy machinery could gain access. Excavation of the basement took place in two phases. The first was the existing basement. It was lowered and all the house walls were supported and underpinned.

Phase two was to excavate and level the rear garden to allow the basement under the new extension.

New basement

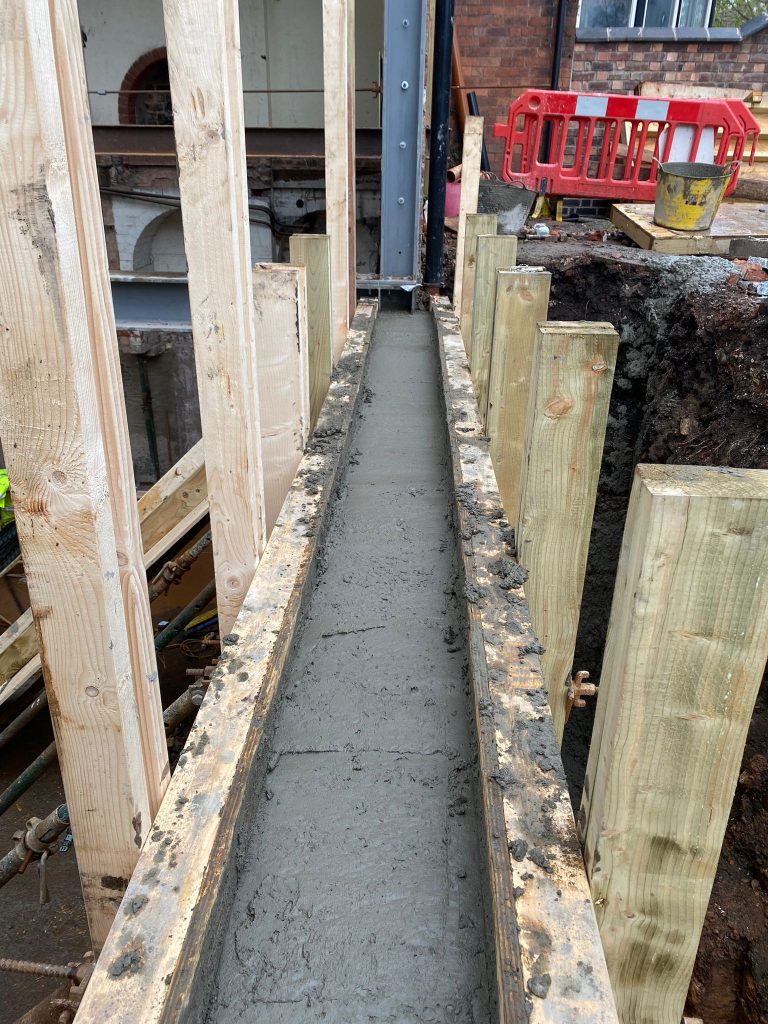

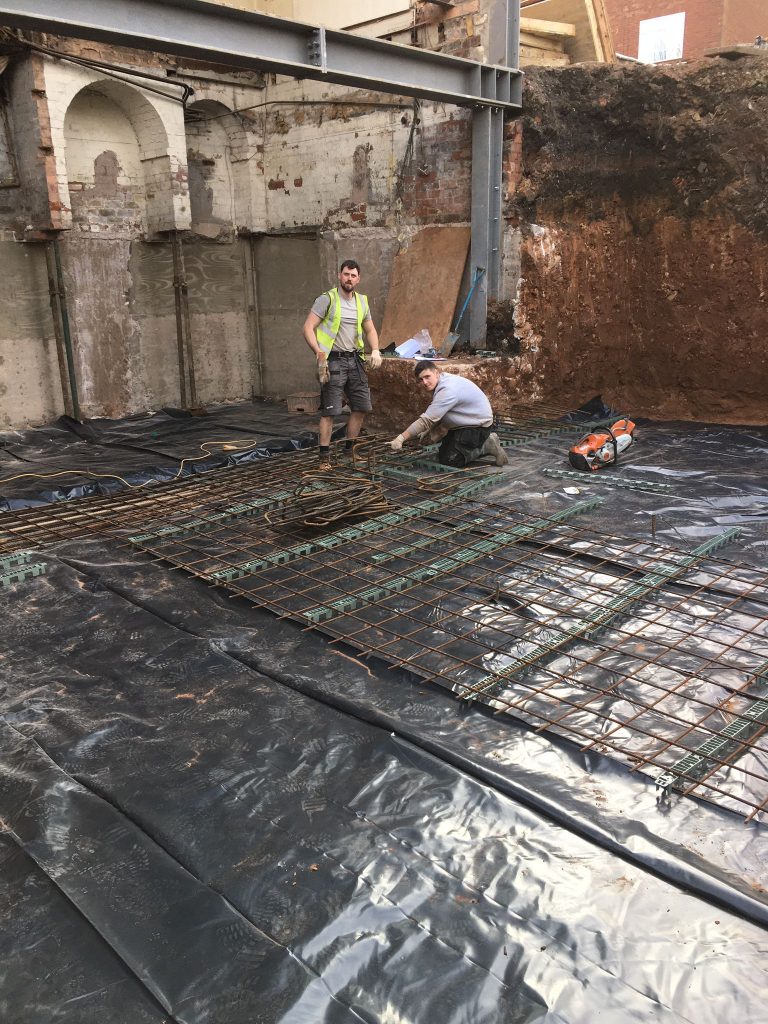

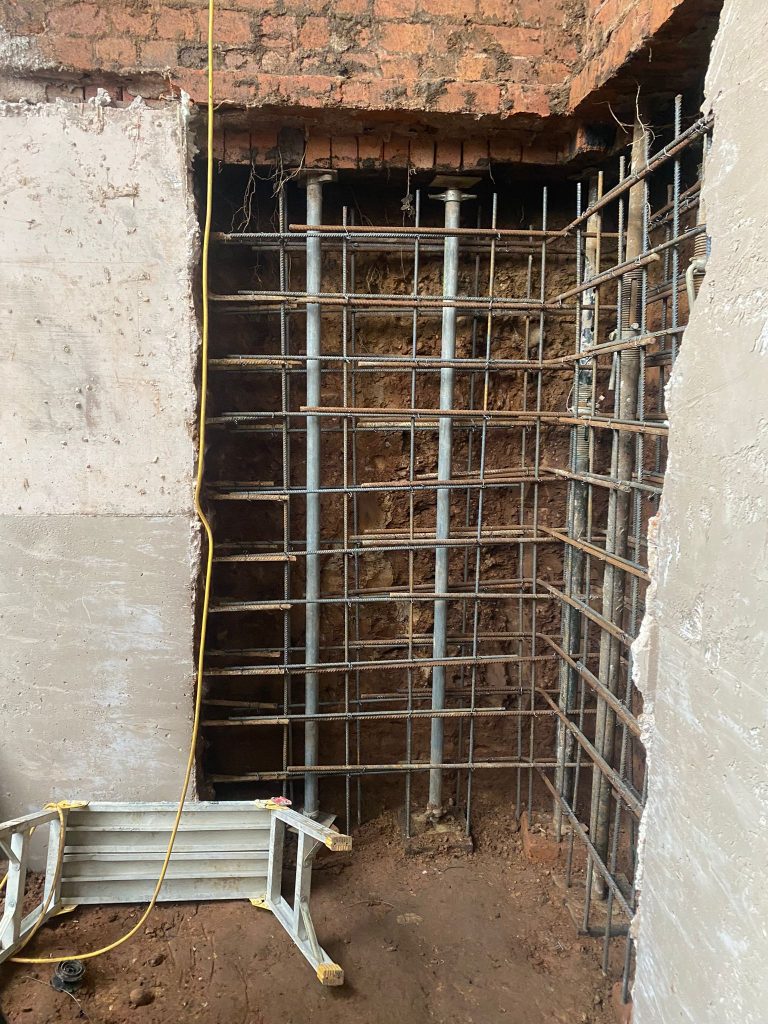

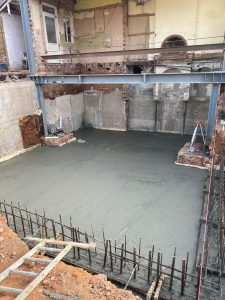

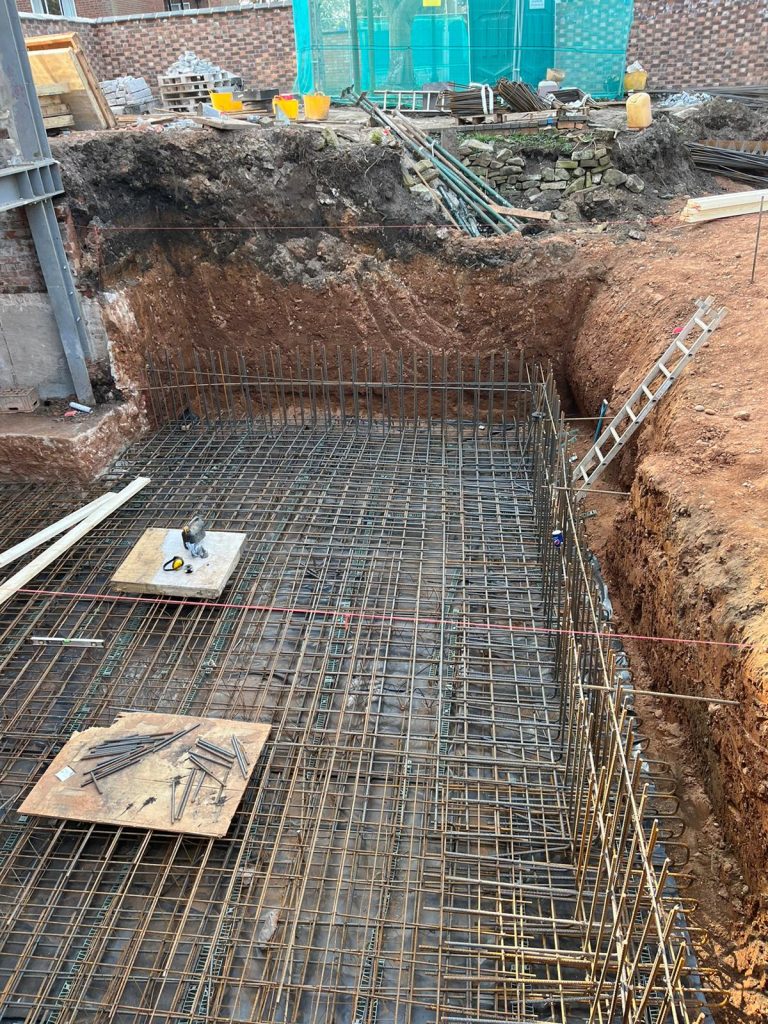

A new slab was levelled, compacted, reinforced and then cast. To link the walls and slab in the new basement under the extension starter bars were installed, ensuring a monolithic structure.

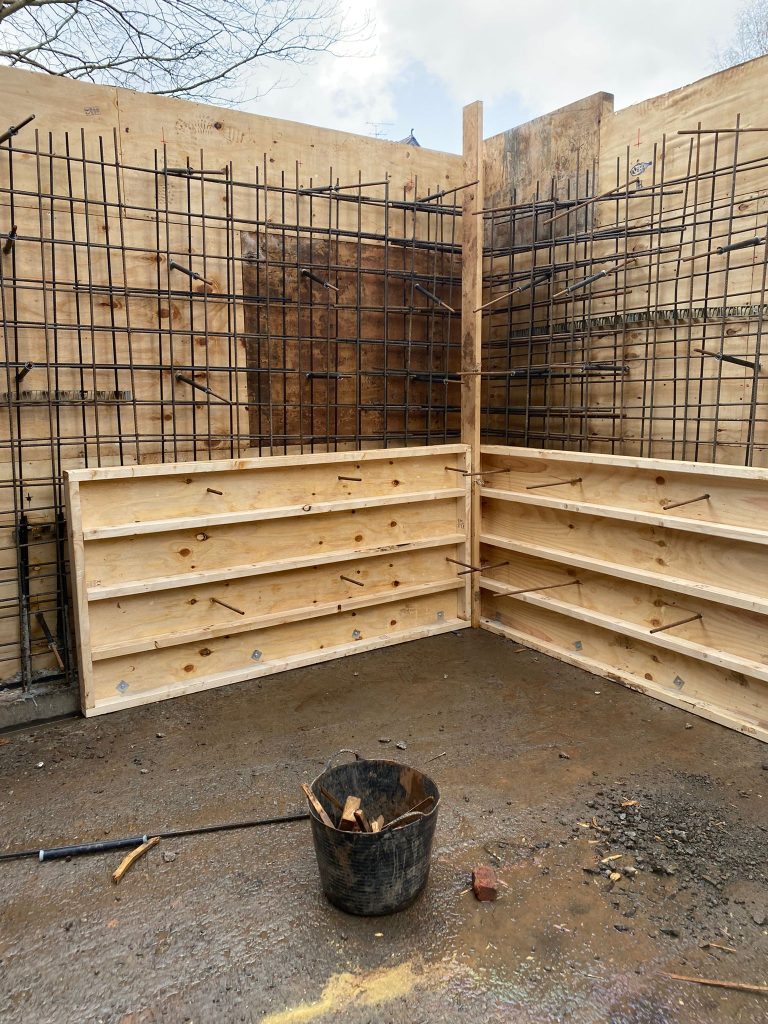

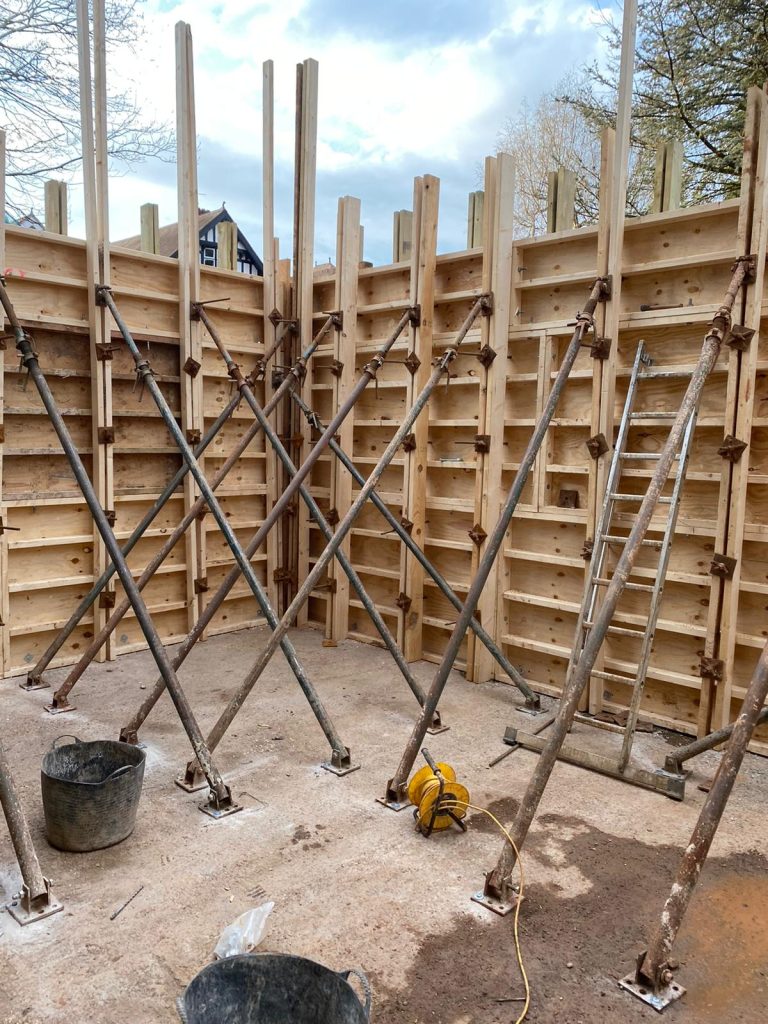

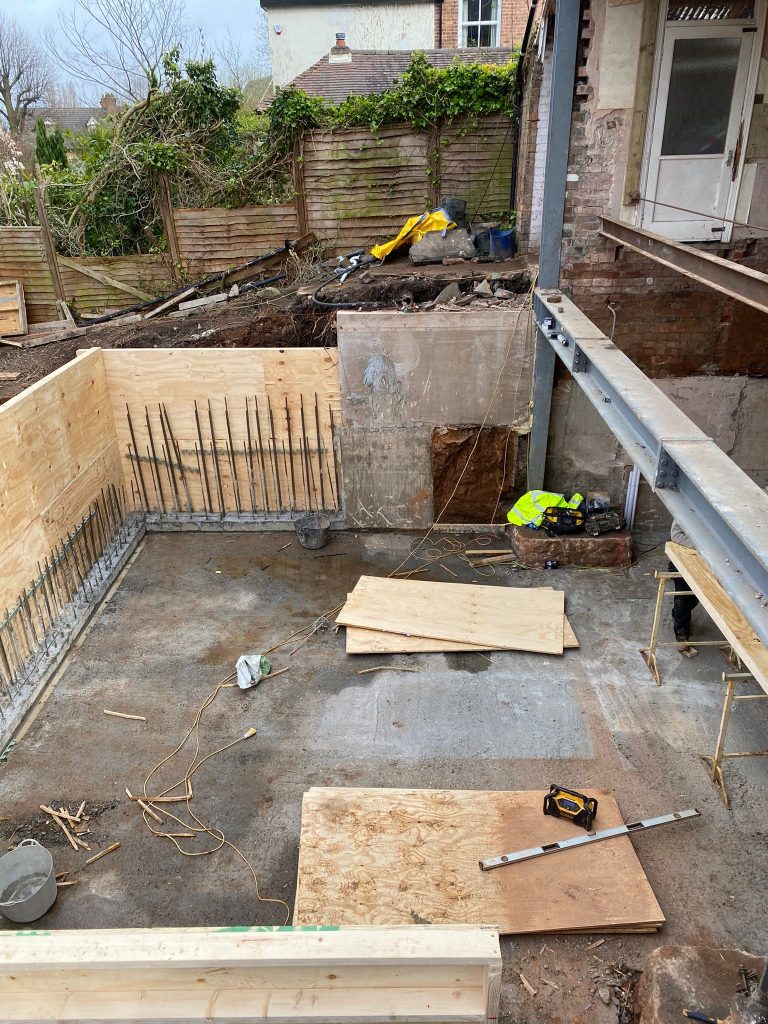

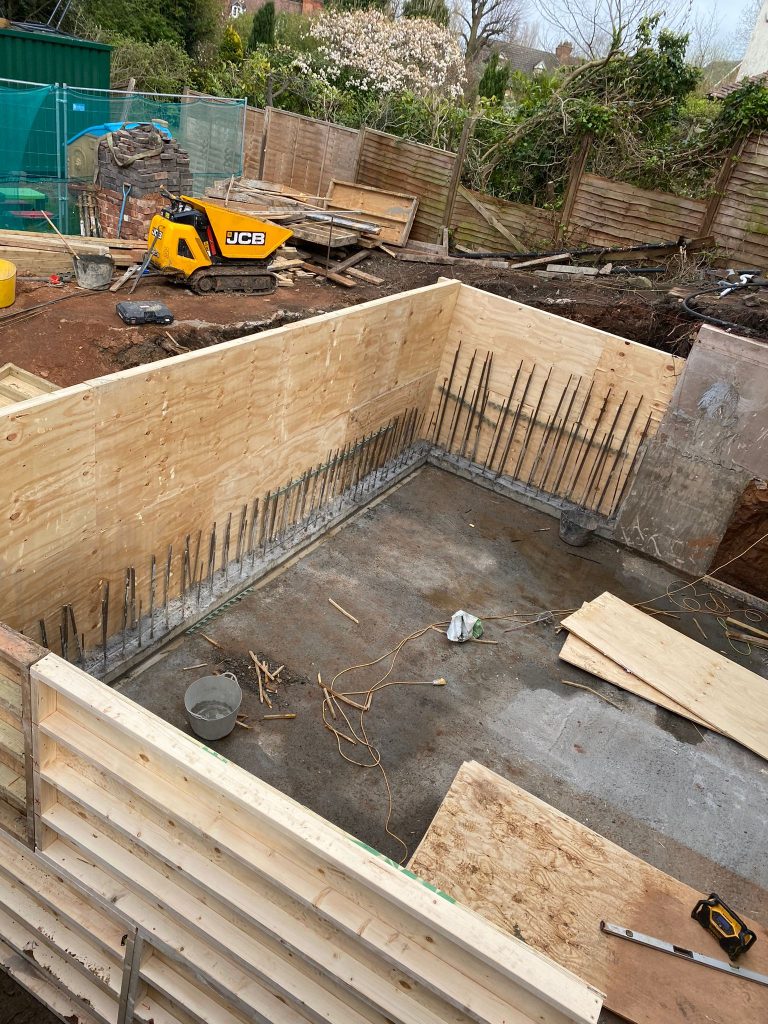

The new walls were shuttered, had steel reinforcing added and supported to allow the walls to be cast in one section.

Ground floor

Finally, the structure for basement under the new extension was finished with a block and beam floor, creating the ground floor.

Stage 2 – Waterproofing

The new external walls under the new extension had to include a dual-protection system to satisfy the requirements of the warranty provider. Beautiful Basements was the designer and installer for both systems.

Primary System

Type B – Integral protection

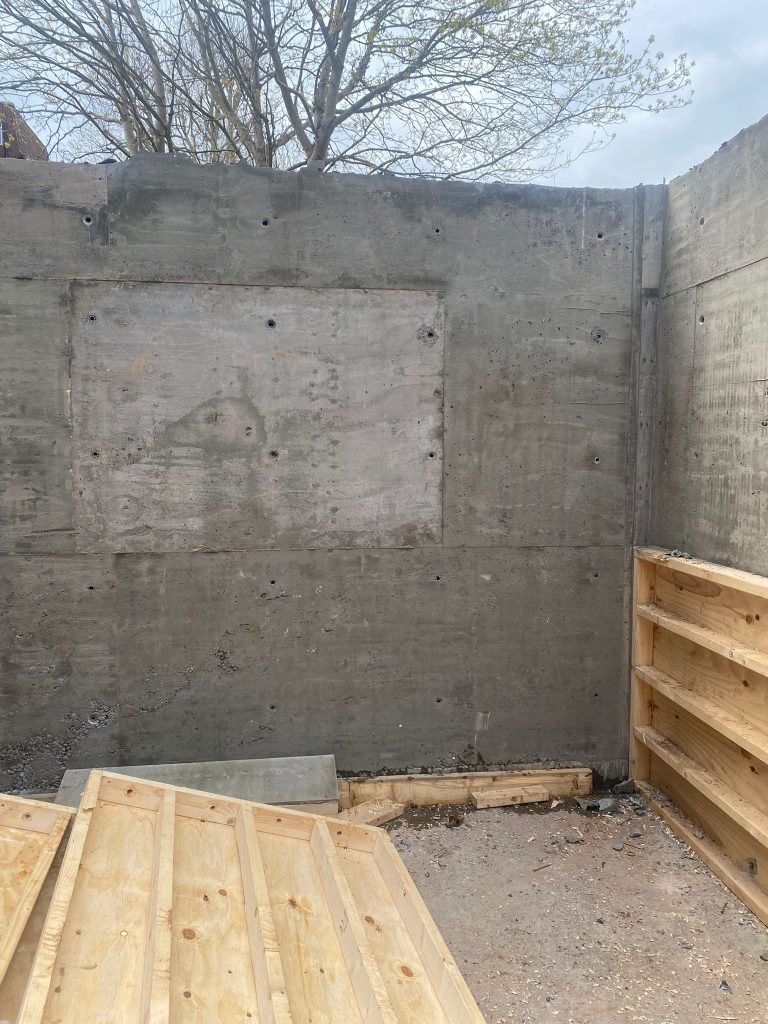

All new external walls, the concrete slab were cast with concrete including a waterproof additive. The steel reinforcing within this structure was designed to reduce the cracking to less than 0.3mm, also providing integral protection. All construction and day joints have a crystalising waterproofing slurry and an expanding waterbar applied to them to waterproof natural weak points.

Secondary System

Type C – Drained cavity protection

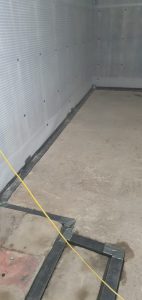

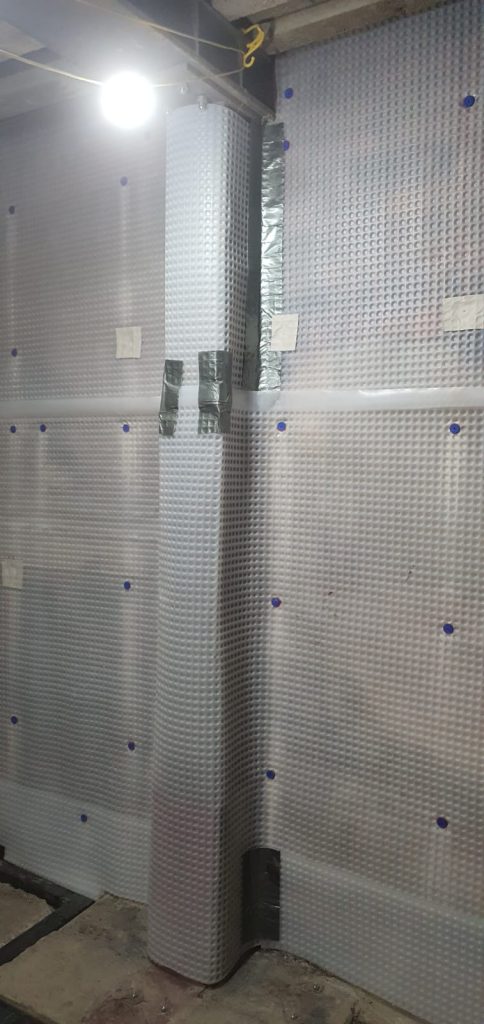

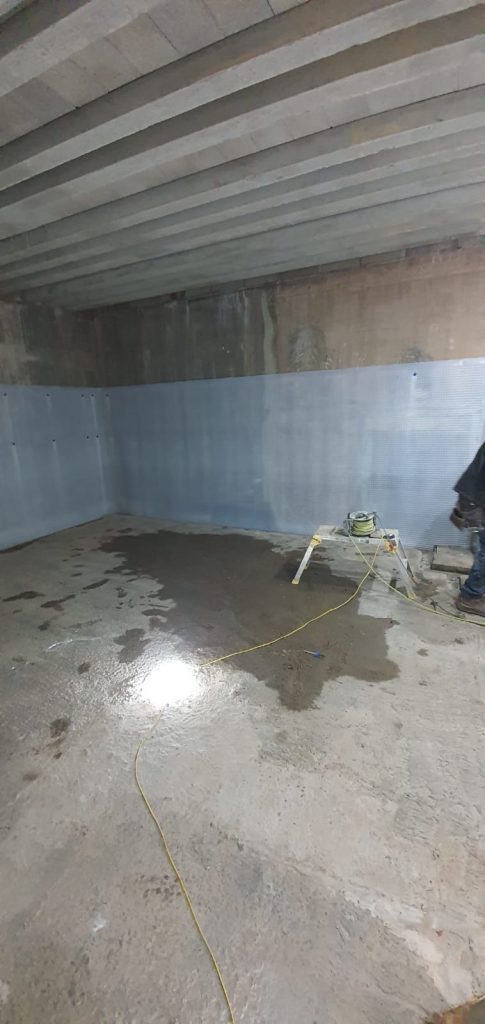

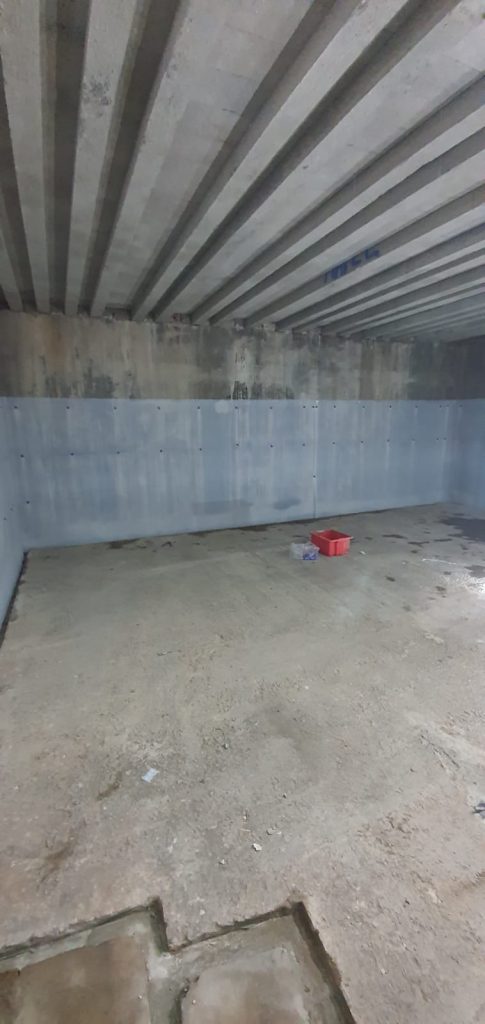

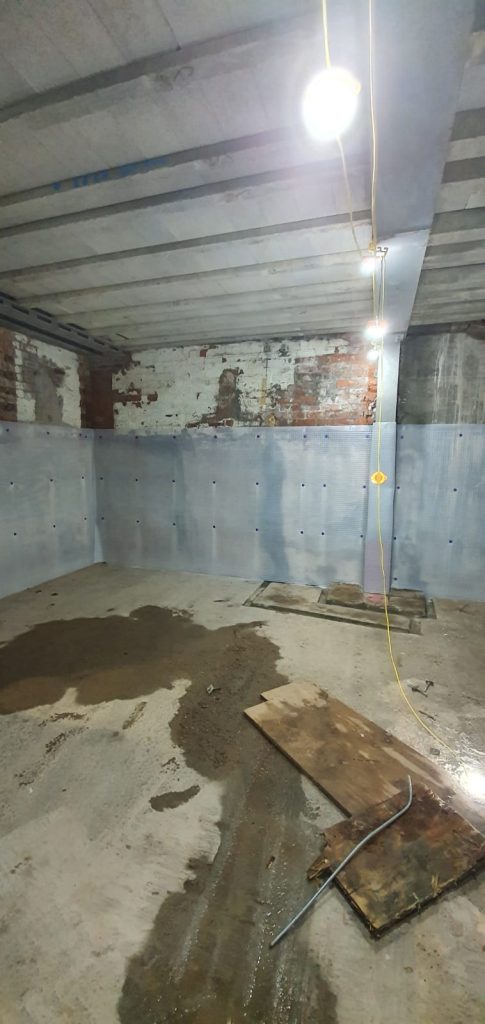

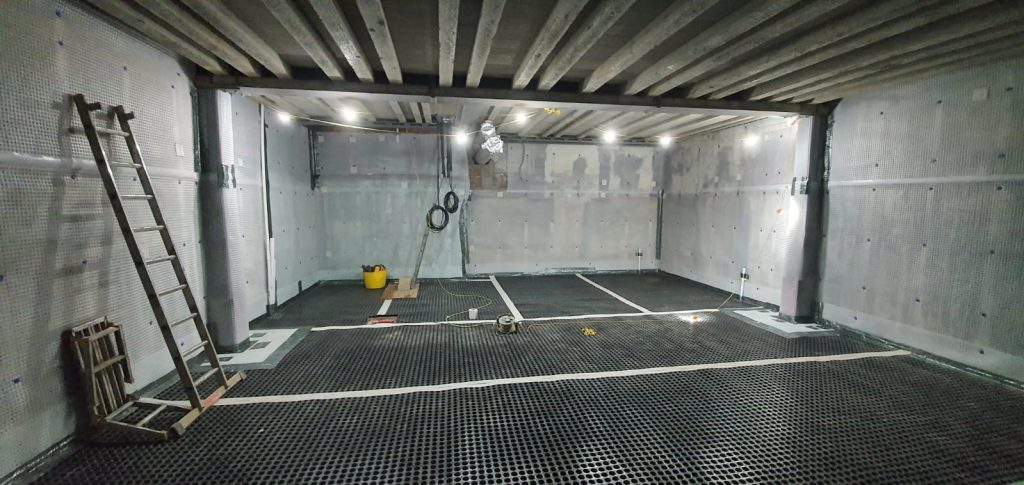

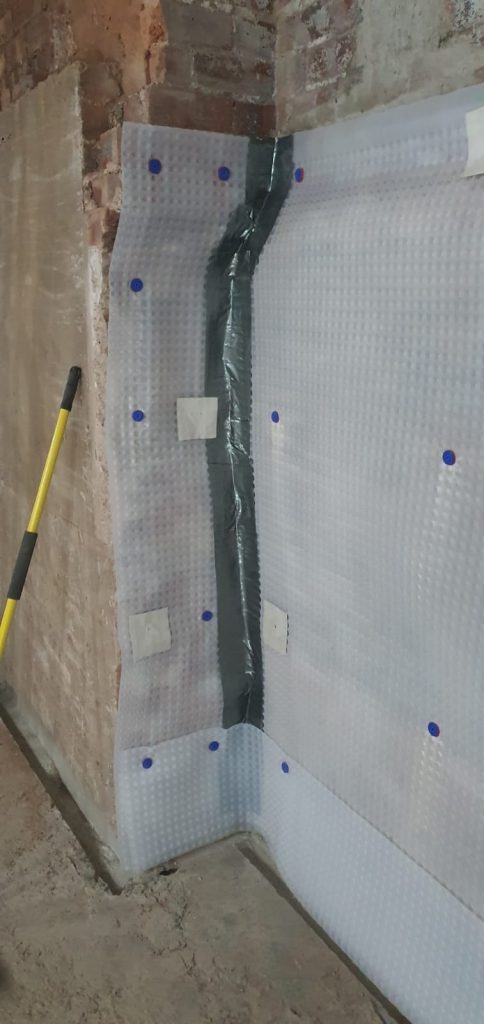

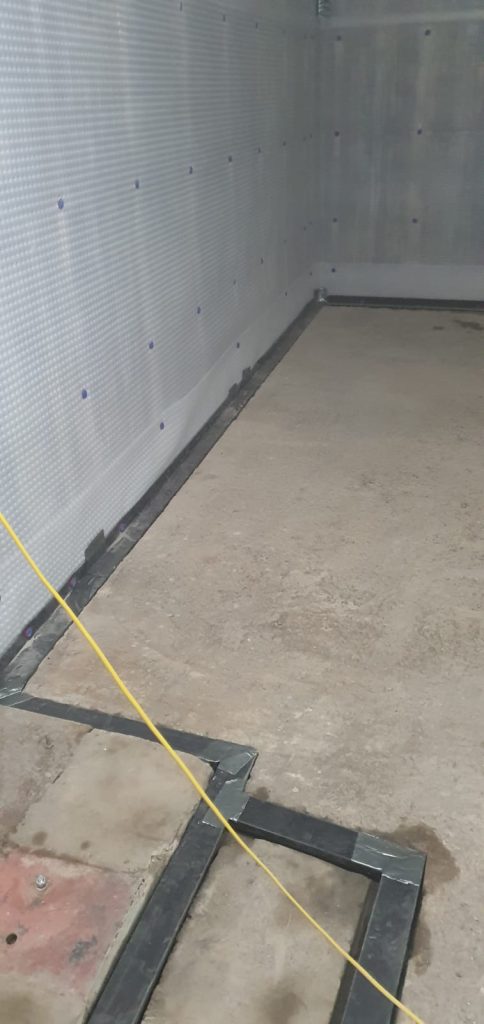

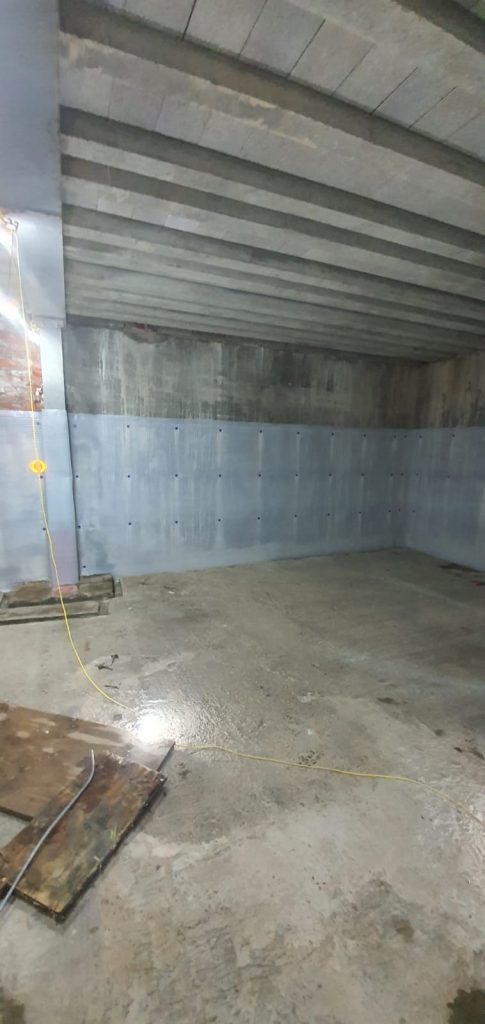

At the base of all external walls a recessed concrete channel was created within the slab. All walls and the floor were lined with a cavity drainage membrane (CDM). These membranes were linked to sump chambers via the recessed perimeter channels. Within the sump is two pumps and a high-level alarm. This system is designed to catch any water that is not stopped by the primary system and discharge it automatically. Flushing and maintenance points were installed to allow future servicing of the system. The front and rear lower sections are linked with a underground pipe.

Both waterproofing systems were designed by Structural Surveyors in Structural Waterproofing (CSSW) in accordance with BS8102:2009

All waterproofing materials were supplied by Triton Systems Ltd
